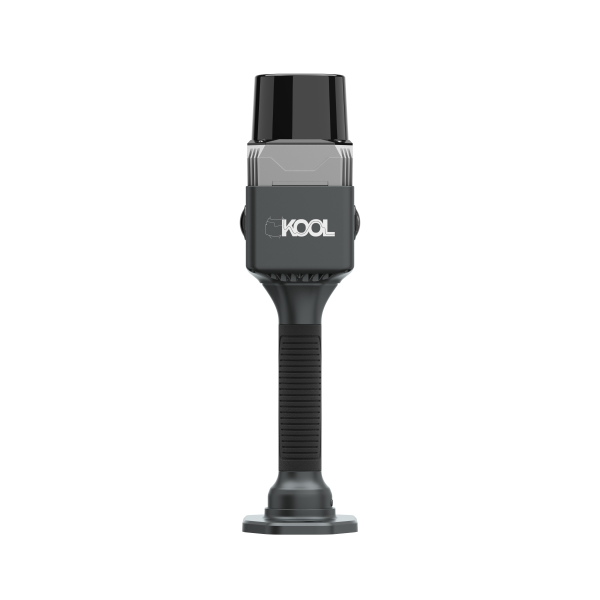

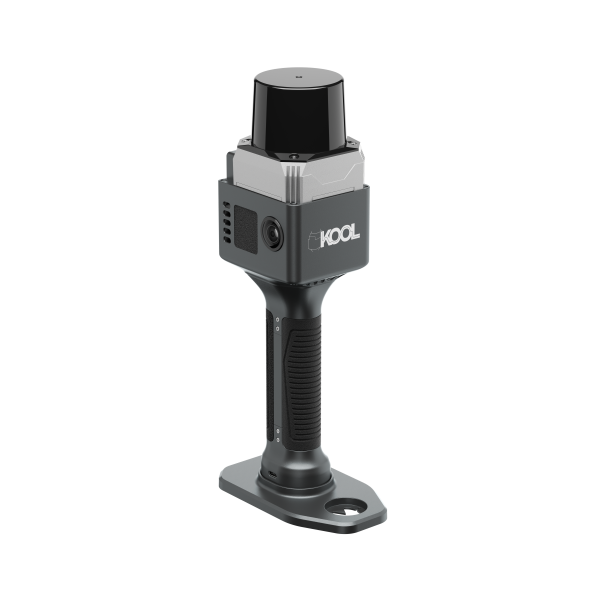

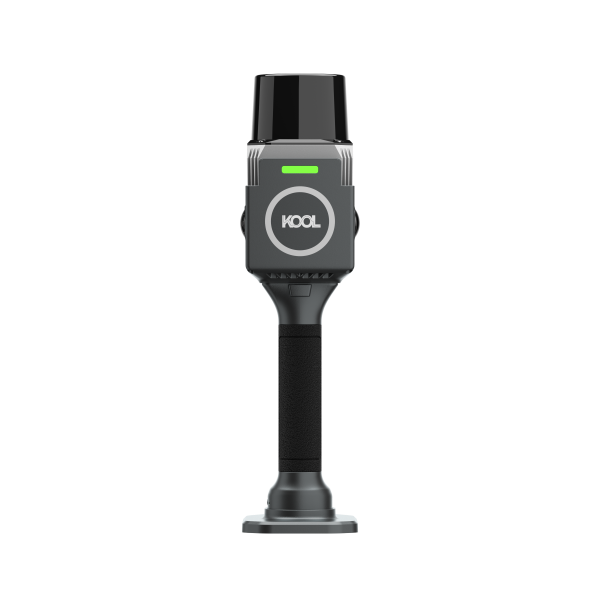

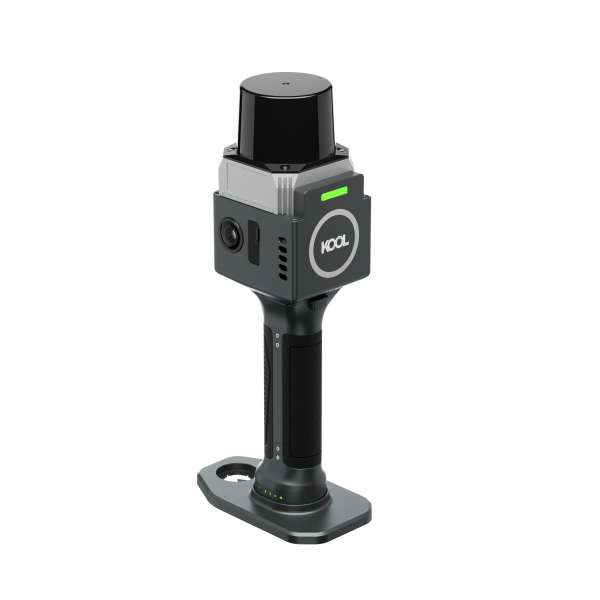

KOOL SLAM

Features

– Enjoys lightweight as well as sweet spot in scan range 100m

– Super-wide FOV 360°x130° to bring larger coverage

– 2 nos. 12MP HD camera lens standby for photorealistic colorization

– Powerful algorithm to enable high-quality reality capture and digital reconstruction

– Abundant software kits available from pre-process to industrial applications

Description

KOOL Handheld 3D Laser Scanner	Scan Range	0.1-40m @10% reflectivity; 0.1-100m @90% reflectivity
	FOV	360°(H.)x130°(V.) optimized for data redundancy
	Scanner Sensor	Mixed solid-state laser with stable internal structure
	Mapping Method	SLAM, with realtime point cloud display
	Process Mode	Realtime and post-process both
	Scan Rate	200,000 pts/sec (equivalent to 1.2 million pts/sec resulted from non-repetitive scanning and exclusive vari-frequency tech)
	Laser Class	Class-1 eye-safety
	Camera Lens	2x 12MP
	Fieldwork Control	MapStar
	Data Process	AcuteLas Studio
	Accuracy Performance	≤1cm relative accuracy
	Geo-referencing	Control points establishment for localization
	Power Supply	Handgrip battery, 3,150mAh, 45.36Wh
	Power Consumption	23W
	Endurance	150 min
	Data Management	TF card and Type-C
	Memory Capacity	128 GB, expandable
	Ingress Protection	IP5X
	Net Weight	1.12 kg
	Dimension	111x222x33 mm
	Working Temperature	-20℃ to 45℃
	Storage Temperature	-20℃ to 45℃
